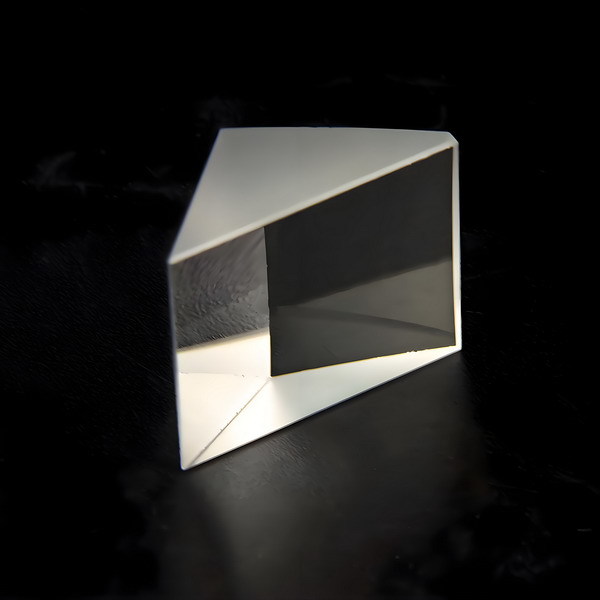

Anti-reflective Coated Right Angle Prism For Minimizing Glare In Optical Devices
1. Material and Construction:
The prism is precision-fabricated from high-grade optical glass, typically N-BK7 or Fused Silica, ensuring excellent transmission and thermal stability. The key feature is a thin-film Anti-reflective Coating applied via vapor deposition. This coating consists of single layers (e.g., Magnesium Fluoride/MgF2) or multi-layer dielectric stacks engineered for specific wavelength ranges.
2. Key Properties:
This component is defined by its precise 45°-90°-45° angles, guaranteeing accurate light control. The AR coating provides extremely low surface reflectance (often <0.5% per surface), which directly translates to high transmission efficiency (>99.5% per surface possible) and minimized light loss. This results in superior contrast and a high signal-to-noise ratio by eliminating ghost images and flare.
3. Primary Function:
The fundamental optical function is to bend a light path by 90 degrees or to invert an image 180 degrees. The integrated AR coating is specifically designed to cancel out Fresnel reflections at the glass-air interfaces. This targeted reduction of reflections is what minimizes glare, prevents unwanted scattered light, and ensures that the maximum amount of intended light passes through the system.
4. Main Applications:
These prisms are critical in any optical device where glare reduction and high-fidelity light transmission are paramount. Key applications include:
Laser Systems: For beam steering and folding.
Imaging Systems: In telescopes, binoculars, periscopes, and high-end camera lenses.
Spectroscopy: As a mirror or beam director in analytical instruments.
Medical Devices: Within imaging probes and diagnostic equipment.
Metrology: For precision alignment and measurement tools.
| Item | Optical Prism |
| Material | Optical glass, Qurartz glass, borosilicate glass, |
| Diameter Tolerance | +0/-0.15 mm |
| Thickness Tolerance | +/-0.15mm |
| Processed | by grinding, polishing |
| Surface Quality | 80/50,60/40,40/20 |
| Material Quality | no scratches and air bubble |
| Transmission | above 90% |
| Chamfer | 0.1-0.5 mm x 45° |
| Surface Coating | Available |
